Prairie Compact 400/600

Compact Power, Professional Performance

Product Overview

The Prairie Compact 400/600 brings professional-grade spraying capabilities in a compact, versatile package. Engineered with the same commitment to quality found in Goldacres’ larger sprayer range, this trailer-mounted sprayer delivers exceptional strength, longevity, and performance for a wide range of applications.

Versatility Unleashed

Our Prairie Compact are engineered to excel in diverse spraying environments:

• Broadacre Spraying: When fitted with a boom the Prairie Compact with its medium pressure 20l/min diaphragm pump provides constant pressure and volume ideal for broadacre spraying.
• Weed / Pest Control: Using either hose reel / gun for spot / hand spraying or when fitted with a boom a wide range of pest control applications can be achieved.
• Contracting: Quality components are used for a long trouble free life suitable for continuous use.

Key Technical Highlights

Powerful Propulsion

• Engine: Honda GX100 (2.8hp) petrol engine
• Pump: Udor Iota Diaphragm Pump

• • Capacity: 20 l/min
  • Pressure: 290 psi

Precision Engineering

• Tank Sight Tubes

• • Calibrated in 50L increments
  • Clear volume reading

• Complete Drainage Sump
• Hose Reel Specifications

• • Steel housing
  • 30m hose length
  • 3/8″ hose diameter
  • Maximum pressure: 300 psi / 20 bar

Robust Construction

• Frame: Heavy-duty trailer design
• Coupling: 50mm ball coupling
• Wheels: Rigid axle with 14″ wheels and tyres
• Suspension: Leaf Springs
• Mudguards: Plastic with mudflaps

Optional Configurations

• Boom Options

• • 4m Manual Fold (400L)
  • 6m Manual Fold (600L)

• Options

• • Tail Light kit (Required for on road use)

Accessories

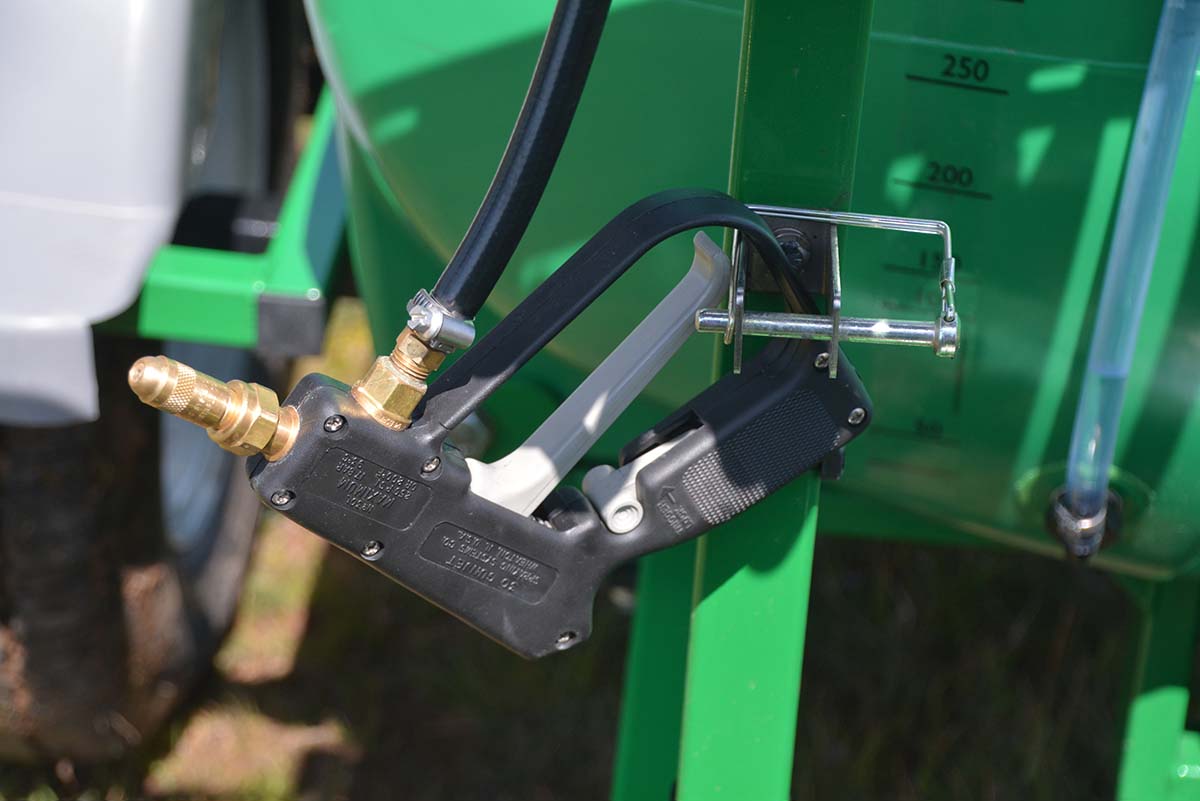

• Spray Gun: AA30 Gunjet pistol grip
• Hose Reel: Manual with full functionality

Why Choose Prairie Compact 400/600?

• Compact yet powerful design
• Versatile across multiple industries
• Robust construction
• Precise application capabilities
• Easy maintenance

Ready to enhance your spraying efficiency? Contact our sales team for a personalized consultation.

Technical Specifications

Feature	400L	600L
Frame	Heavy-duty trailer with 50mm ball coupling
Tank capacity	400L	600L
Optional booms	4m manual fold	6m manual fold
Wheels & Axle	Rigid axle, 14″ wheels & tyres
Mudguards	Plastic mudguards with mudflaps
Pump & engine	20 l/min Udor diaphragm pump with Honda GX120 engine
Hose reel	Manual hose reel with AA30 Gunjet

Dimensions and weights

Feature	400	600
Tank Capacity	400L	600L
Length	3400mm	3400mm
Width	1750mm	1750mm
Height	1420mm	1800mm
Weight	235kg	250kg
